9704
New design one way clip on hydraulic buffer hinge
kitchen cabinets 3D adjustment soft close hinge
Style
European hinge
Size
Insert
Half overlay
Full overlay
Open degree
105°

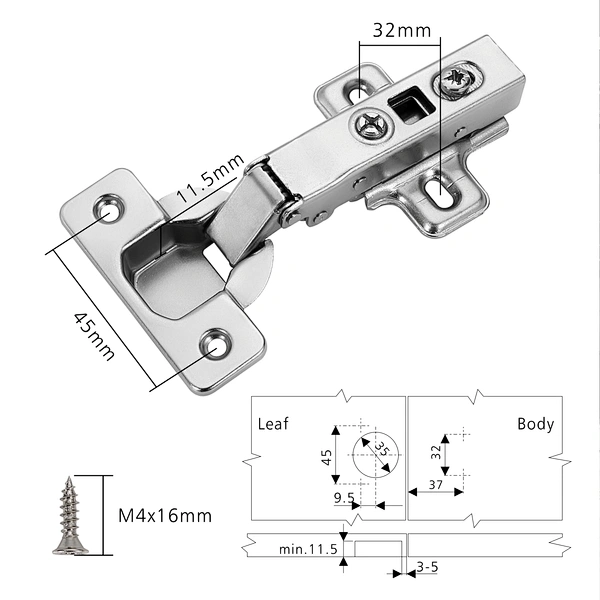

Depth of cup:
11.5mm
Diameter of hinge cup:
35mm
Finish
Nickel plated
Applicable door thickness:
14-22mm
Quantity
For pricing and more, create an account today.
Product Description
Kitchen Cabinets 3d Adjustment Soft Close Hinge
Adjusting 3D soft close door hinge on kitchen cabinets involves fine tuning the door's position in three dimensions: vertical, horizontal, and depth. These kitchen door hinges are equipped with adjustments that allow you to customize the door's alignment for a seamless and quiet closing motion.
Self closing cabinet hinges have a mechanism that when activated allows the cabinet door to gently close before completely closing.
Adjusting Vertical Alignment:
Locate Vertical Adjustment Screw:
Look for the vertical adjustment screw on the hinge. It is often labeled with a"V"or an arrow indicating vertical adjustment.
Turn Screw to Adjust:
Turn Screw to Adjust:
Turn the vertical adjustment screw clockwise to raise the door or counterclockwise to lower it. This controls the vertical alignment of the door.
Test the Adjustment:
Test the Adjustment:
Close the door and check if it aligns properly with the cabinet frame. Make additional adjustments until the vertical alignment is satisfactory.
Modern
Type:
Kitchen Cabinet
Brand Name:
Filta
Cup diameter：
35mm
Material:
Cold-rolled Steel
Usage:
Cabinet
Free Sample:
Available
Delivery time:
Within 7 days for ready goods
Within 45 days after receipt the deposit for OEM order
Supply Ability:
2.000,000 Piece/per Month
Packaging Details:
Firstly wrapped by poly bag, then put in the inner box, finally in carton.
Nearest Port:
Ningbo or Shanghai
